System calibration & validation for metering control systems

KROHNE certified validation with full audit trail

  • Additional diagnostics and monitoring to achieve full performance of the system
  • Verification of the correct firmware and software versions and parameter settings
  • Alarm and error log review
  • Periodical inspection, including environmental and metrological certification

calibration validation metering control systems

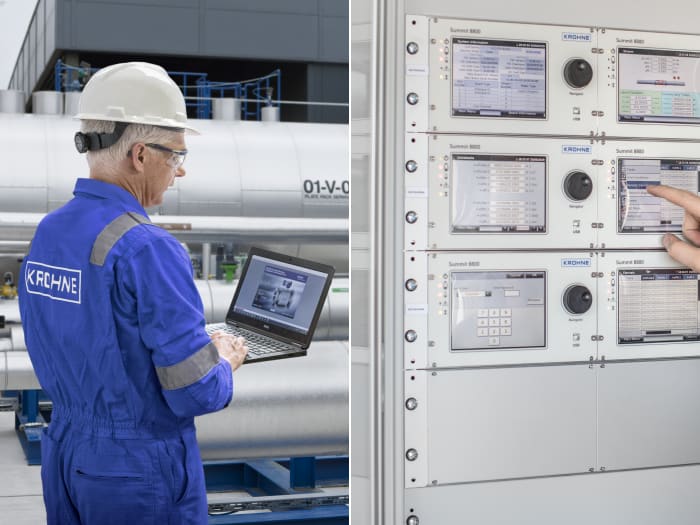

During the validation of a metering control system, a KROHNE engineer will verify, amongst other items, whether all components are still sealed as per metrology requirements, that parameter settings have not changed, and that firm- and hardware versions are still as per certification. Also, event and alarm logs will be reviewed and any necessary corrective actions defined.

Usually validations are combined with a maintenance visit where analogue inputs are re-calibrated and data communication is tested, filters are cleaned or replaced and operational items such as CPU loadings are analysed.

Product highlights

  • Periodical validation of instrument seals, parameter settings and firmware and software versions
  • Review of alarm and event log with implementation of corrective actions where required
  • Delivery of validation certificate by KROHNE
  • Data analytics based on log data

Typical applications

  • Custody transfer metering systems and allocation measurement of crude oil, natural gas and chemical or industrial gases
  • Custody transfer measurement of refined products, LPG and (produced) water
  • Ship, truck and tanker loading and unloading
  • LACT measurements
